• GVWR, 6400 lbs. (2903 kg) (Standard on C*10703, C*10903, CC10553, and CC10753 models.)
• Rear wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps
• Frame, hydroformed
• Pickup box, Fleetside
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Steering, power, rack-and-pinion
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) steel, 6-lug painted includes painted center caps (spare wheel will not cosmetically match the other 4 wheels)
• Tires, P245/70R17 all-season, blackwall (Requires 2WD models.)
• Wheel, 17" (43.2 cm) steel spare (spare wheel will not cosmetically match the other 4 wheels)
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Bumper, front Black (Includes Black bumper end caps.)
• Bumper, rear chrome, step-style with pad
• Air dam, Black
• Grille, Black surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Audio system feature, 4-speaker system (Requires Regular Cab models.)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com. Not available with (UE0) OnStar, delete.)

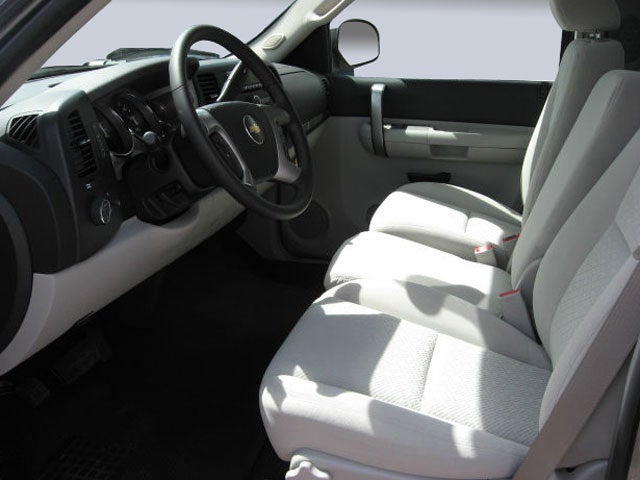

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Dark Titanium, Vinyl Seat trim (Vinyl seats require (BG9) Graphite-colored rubberized vinyl floor covering.)
• Air conditioning delete provides heater only (Requires Regular Cab models)
• Floor covering, Black rubberized-vinyl
• Steering wheel, includes theft-deterrent locking feature
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding, with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Coat hooks, rear driver and passenger side
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches

• Tire Pressure Monitoring System (does not apply to spare tire)
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, front disc/rear drum
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. If the order type is FDR, (UE0) OnStar delete will be forced on. Not available with a ship-to of Puerto Rico or the Virgin Islands. Remote Door Unlock requires (AU3) Power door locks.)

ENGINE, VORTEC 4.8L V8 SFI

• (295 hp [220.0 kW] @ 5600 rpm
• 305 lb-ft torque [411.8 N-m] @ 4800 rpm)
• iron block

• SUSPENSION PACKAGE SOLID SMOOTH RIDE includes 35 mm piston twin tube shocks and 32mm front stabilizer bar (STD)
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• DOOR LOCKS POWER
• BLACK
• DARK TITANIUM CLOTH SEAT TRIM
• REMOTE KEYLESS ENTRY with 2 transmitters panic button and content theft alarm Optional on all models when SEO (5B5) power windows locks and mirrors is ordered
• PAINT SOLID (STD)
• WHEELS 4 - 17 X 7.5 (43.2 CM X 19.1 CM) 6-LUG CHROME-STYLED STEEL includes chrome center caps (spare wheel will not cosmetically match the other 4 wheels)
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• SPARE TIRE LOCK keyed cylinder lock that utilizes same key as ignition and door
• LS PACKAGE includes (PY9) 4-17 x 7.5 (43.2 cm x 19.1 cm) 6-lug chrome-styled steel wheels (VG3) front chrome bumper and (V22) chrome surround grille
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• TIRES P245/70R17 ALL-SEASON BLACKWALL (STD)
• REAR AXLE 3.23 RATIO
• FLOOR COVERING COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS (Extended and Crew Cab models also include rear floor mats)
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• WINDOWS LOCKS AND MIRRORS POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE Provides power driver and passenger front side windows with uplevel door panels on a base level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors RPO (AU3) power door locks and RPO (UQ3) speaker system audio system feature. C/K***43-53 models include rear door power windows and locks.
• REMOTE KEYLESS ENTRY with 2 transmitters panic button and content theft alarm
• AIR CONDITIONING SINGLE-ZONE MANUAL FRONT CLIMATE CONTROL
• ENGINE VORTEC 4.8L V8 SFI (295 hp [220.0 kW] @ 5600 rpm 305 lb-ft torque [411.8 N-m] @ 4800 rpm) iron block
• Rear Wheel Drive
• Power Steering
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• ABS
• Front Disc/Rear Drum Brakes
• Daytime Running Lights
• Automatic Headlights
• Telematics
• Requires Subscription

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 17.88
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2541
• Curb Weight - Rear (lbs): 1771
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 10000
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4900
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 490
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 780
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 720
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): - TBD -
• Tires
• Front Tire Order Code: QPR
• Rear Tire Order Code: QPR
• Spare Tire Order Code: QPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/o rear bumper (in): 205.6
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 73.6
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 13.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.6
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary

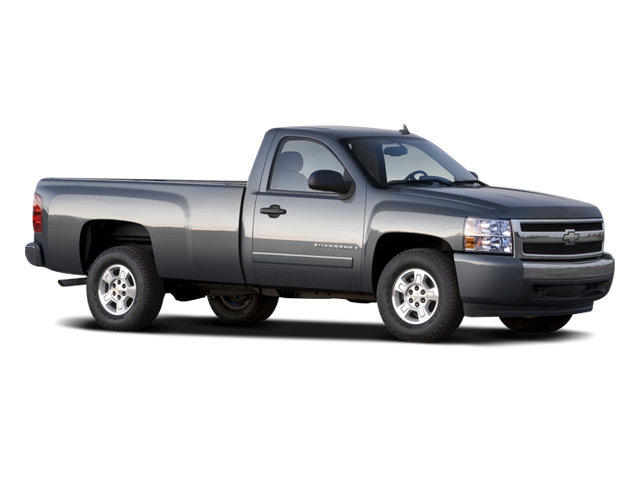

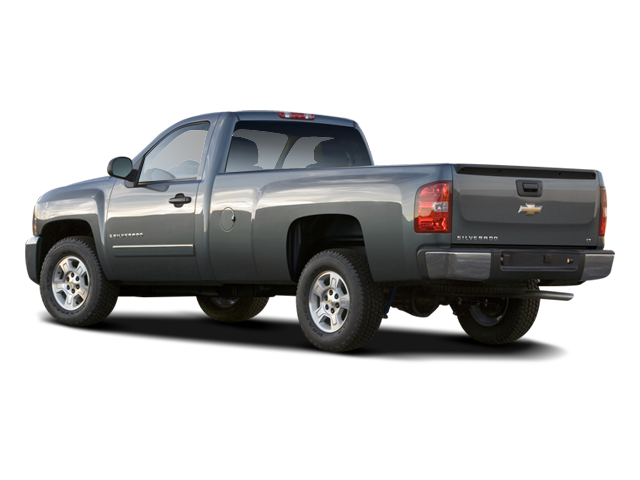

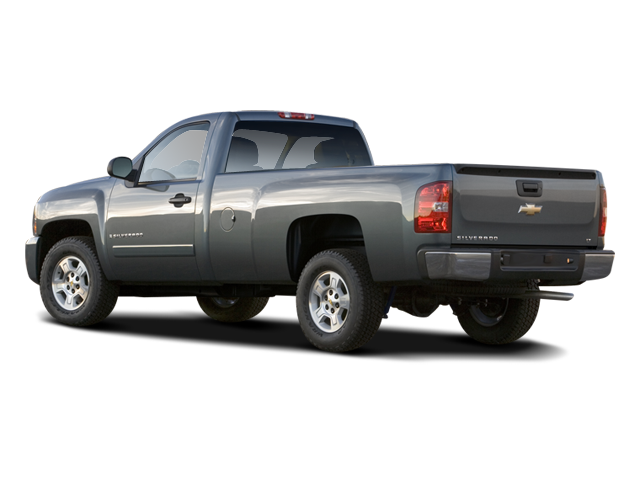

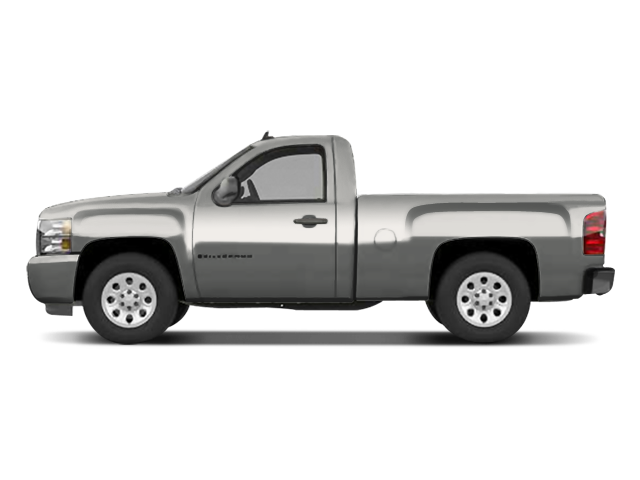

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Reg Cab 6.5' Wideside
• Body Code: E63
